Documented field work
Before, rebuild and recorded result
The need
The job record describes work to put in wiring for two new fixtures and install two wall sconces. It also records preparation for a new ceiling light fixture.
PTX's approach

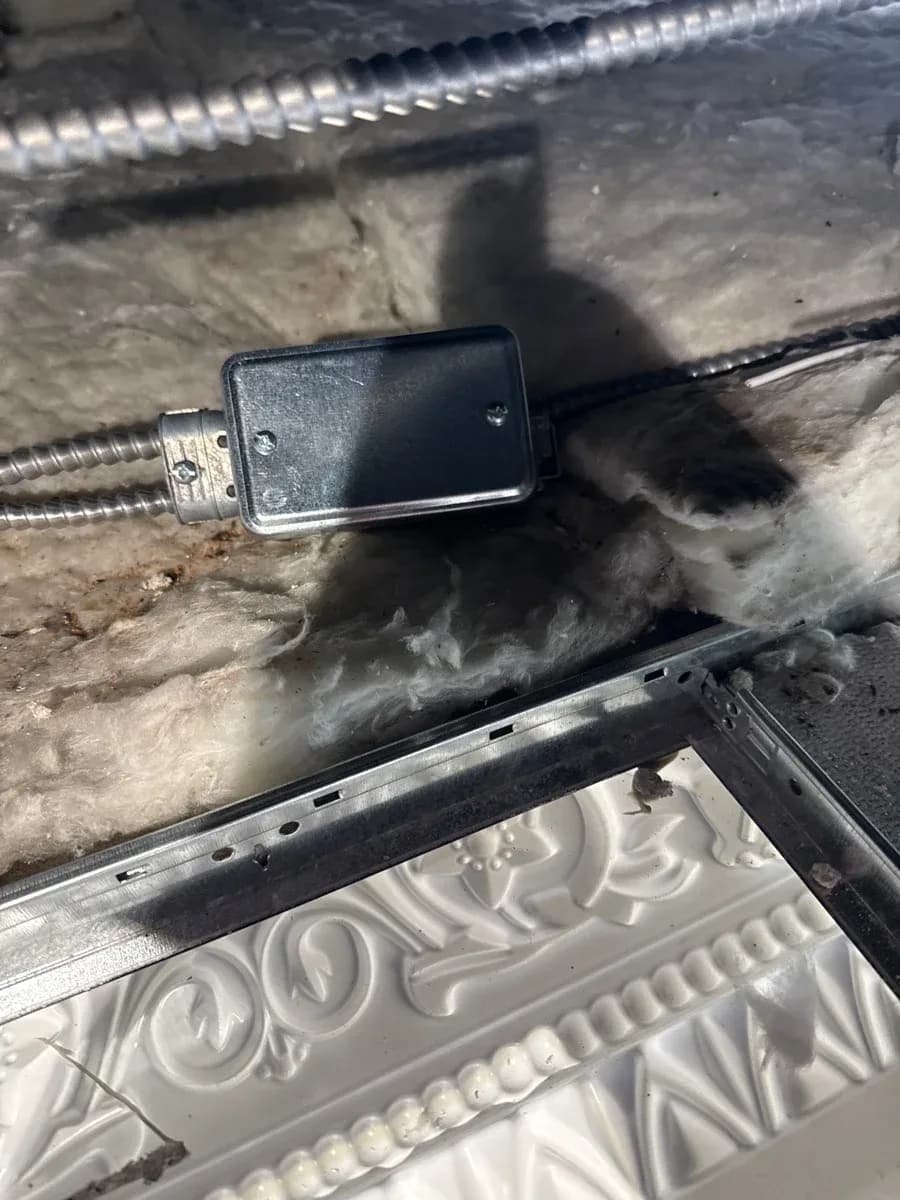

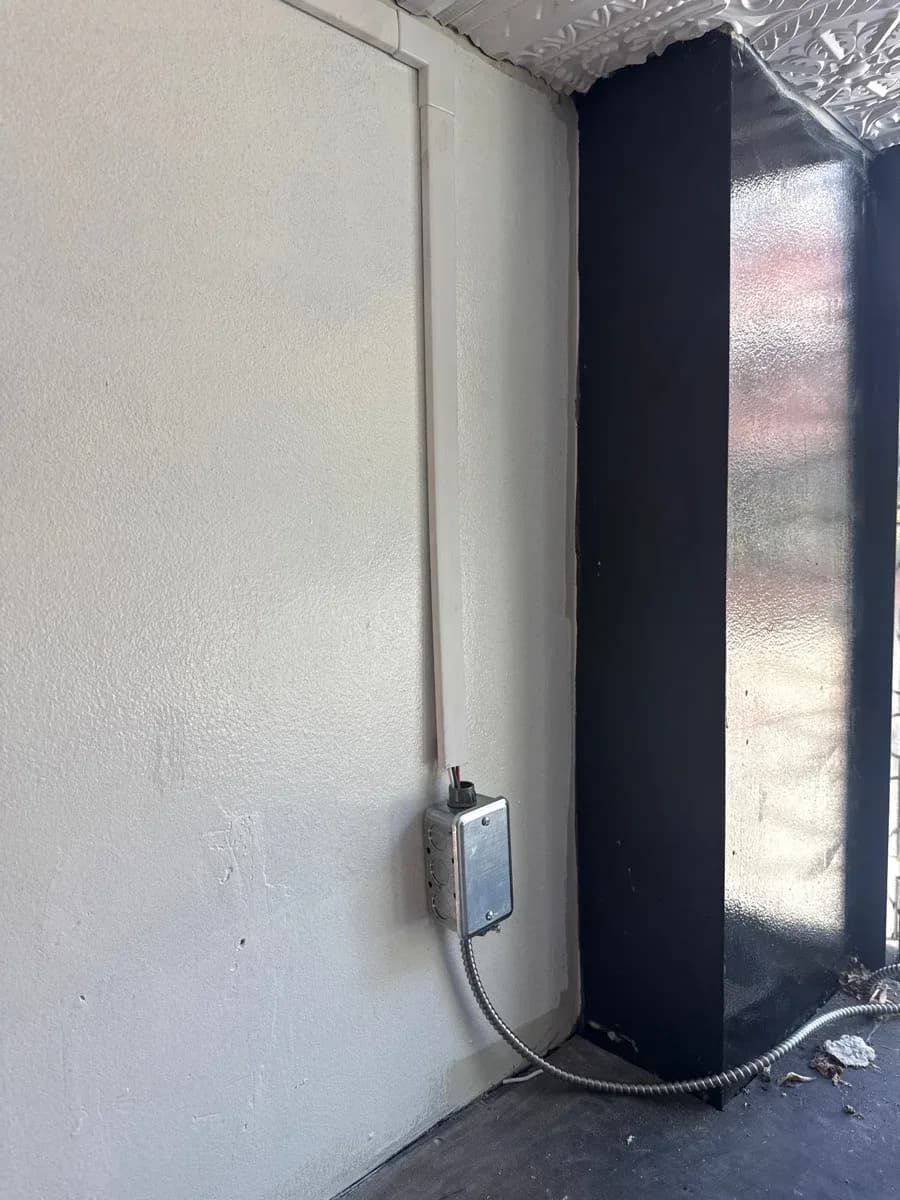

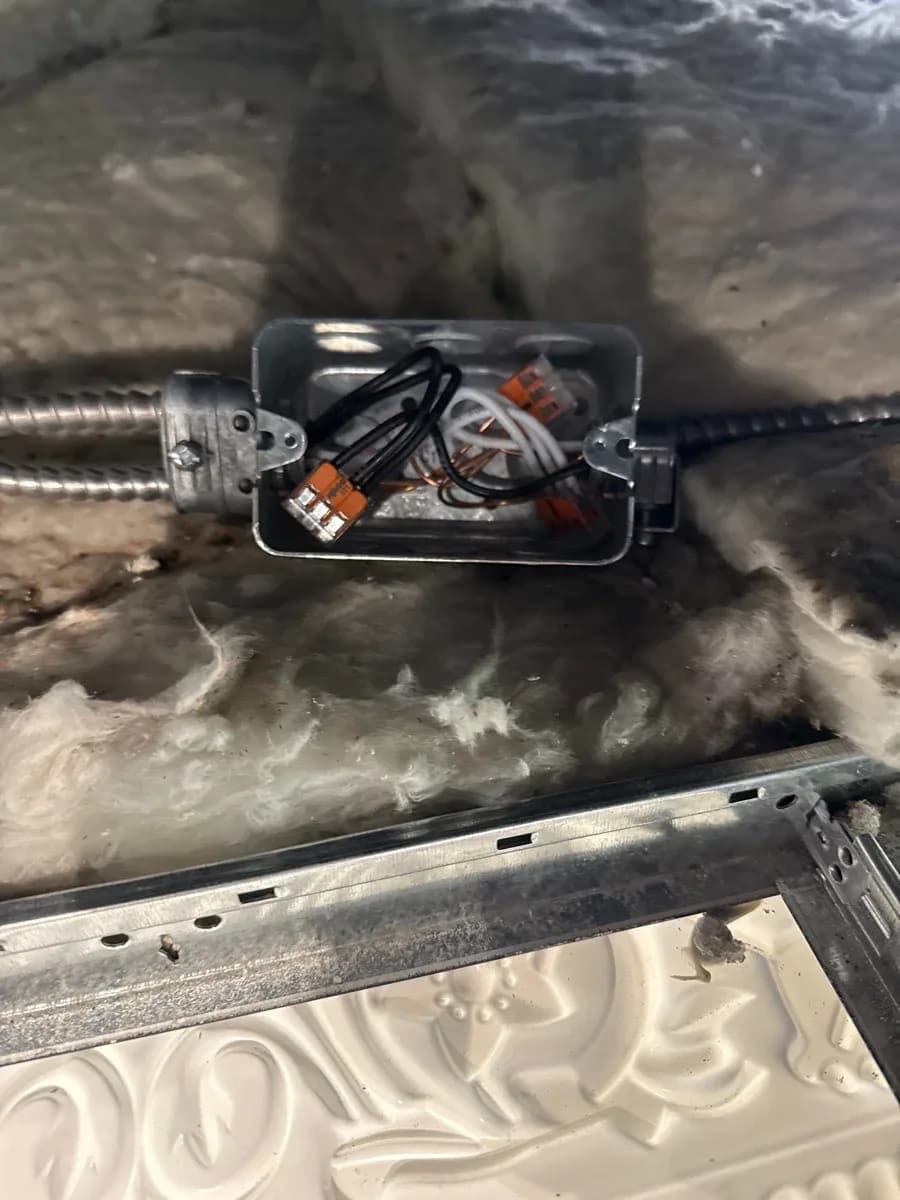

The recorded steps included measuring and laying out the two wall sconces, notching drywall for the fixture wiring, installing backplates and plastic wire moulding, and installing junction boxes. The team ran BX cable and single-conductor wiring, made wire splices in the recorded junction boxes, and accessed the ceiling by removing three PVC panels. A T-bar octagon box was then installed for the ceiling fixture, with the PVC panels glued back into place.
The recorded result

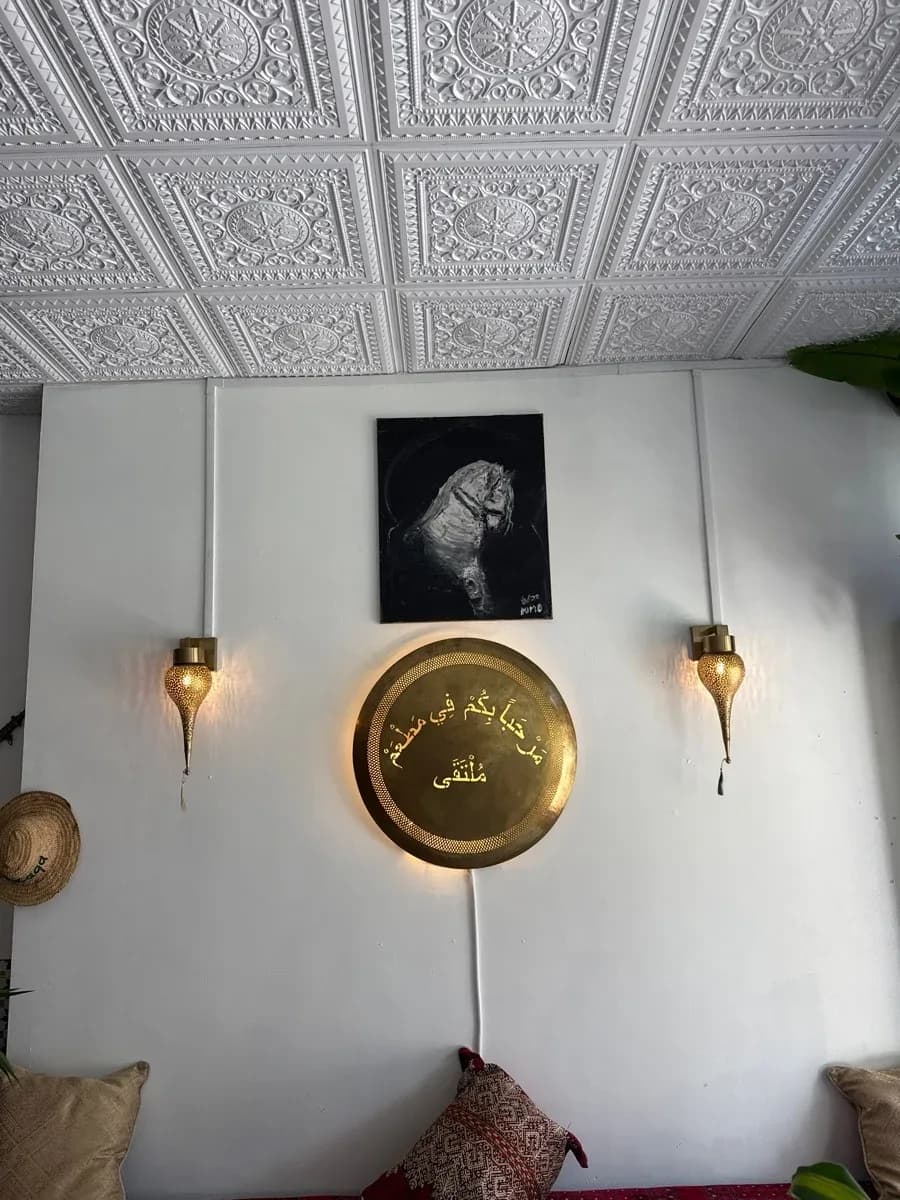

The record states that two wall sconces and one new ceiling light fixture were installed. It also states that the second bulb height was set with the owner, the remaining PVC tiles were glued back to the T-bar ceiling, and the work area was cleaned up. The completed date is recorded as August 10, 2026.
What property decision-makers can learn
This example shows the value of a work record that identifies fixture locations, access steps, wiring routes, junction-box work and finish work. It is an example from one Vancouver property, not a diagnosis or recommendation for another property.
Frequently asked questions
Questions property decision-makers ask
Where was this job completed?
The confirmed municipality is Vancouver. No neighbourhood was verified.
What work is recorded for Job 2285?
The record describes wiring and installation for two wall sconces and one ceiling light fixture, along with junction-box, BX cable, wire moulding and ceiling-access work.
